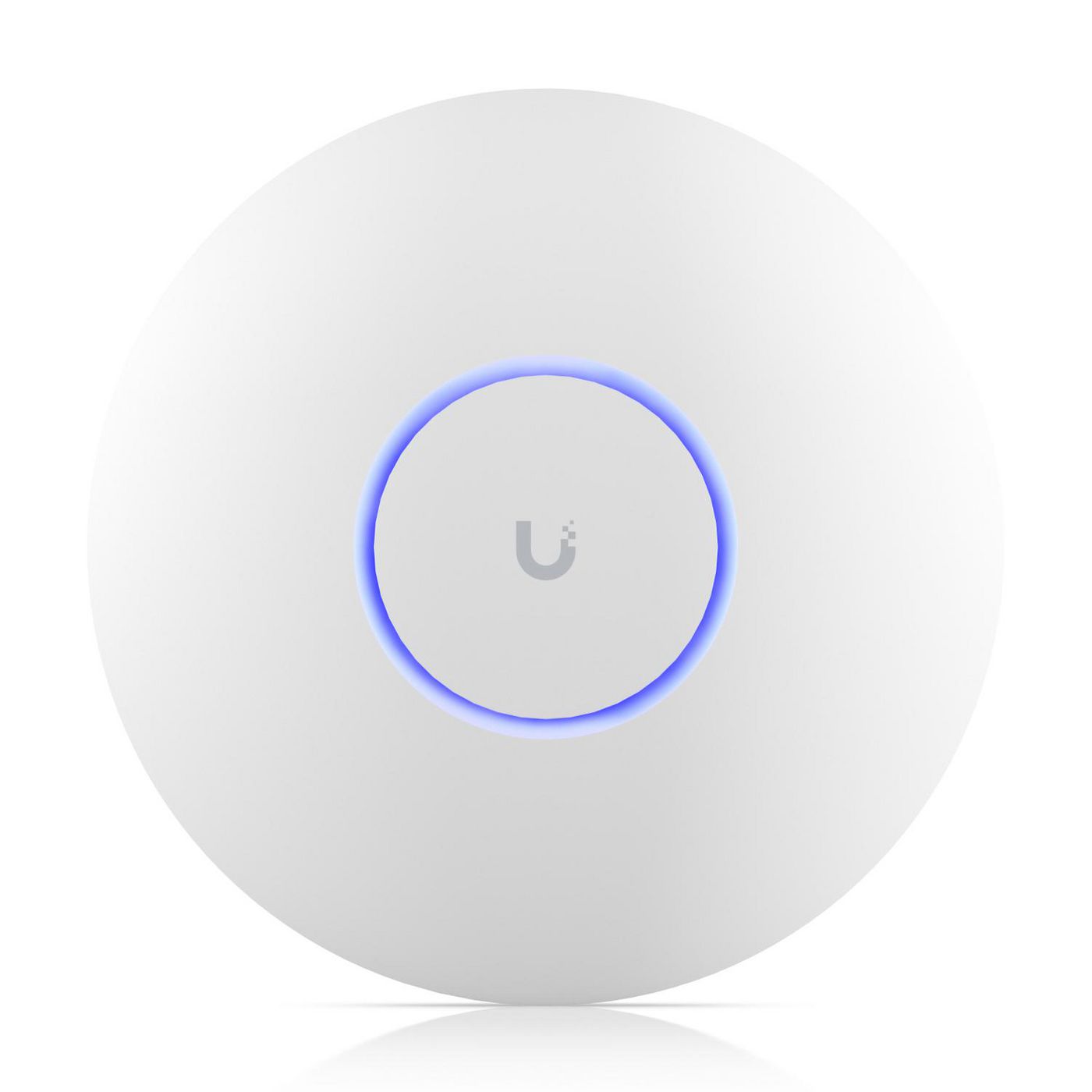

Ubiquiti UniFi U7 Pro Access Point (U7-Pro)

The Ubiquiti UniFi U7 Pro is a high-performance, ceiling-mounted access point engineered to bring next-generation Wi-Fi 7 (802.11be) technology to demanding enterprise, commercial, and high-density residential networks. Built to handle environments saturated with wireless clients, this unit utilizes three distinct wireless bands to deliver high throughput and low-latency stability.

By taking advantage of the newly cleared, interference-free 6 GHz wireless spectrum, the U7 Pro bypasses the channel congestion common on older 2.4 GHz and 5 GHz bands, making it a definitive upgrade for modern workspaces.

Next-Generation Wi-Fi 7 Capabilities

• Tri-Band Radio Configuration: Operates across 2.4 GHz, 5 GHz, and 6 GHz frequencies simultaneously, boasting a combined aggregate over-the-air data rate of up to 9.3 Gbps.

• Multi-Link Operation (MLO): Enables compatible Wi-Fi 7 client hardware to connect across multiple frequency bands at the same time. This ensures that if one channel faces local interference, data transits seamlessly over the other link without dropouts.

• 320 MHz Channel Width: Doubles the maximum channel size on the 6 GHz band compared to previous Wi-Fi 6E hardware. This wider pipeline allows for massive local file transfers, smooth 4K/8K video streaming, and rapid server backups.

• 2.5 GbE Wired Uplink: Equipped with a 2.5 Gigabit RJ45 ethernet port. This high-speed physical interface prevents the incoming wired connection from bottlenecking the multi-gigabit wireless capacity of the radios.

Performance Matrix by Wireless Band

The U7 Pro distributes its multi-user MIMO (MU-MIMO) streams across its radio arrays to maintain throughput balance even when serving over three hundred concurrent client devices:

Power & Installation Requirement: The U7 Pro requires standard 802.3at PoE+ power to operate at full capacity, drawing a maximum of 21 Watts. Please ensure your network switch or standalone power injector supports the PoE+ standard, as legacy 802.3af PoE switches will not provide enough wattage to run this access point.

Technical Specifications

• Dimensions: Ø 206.0 mm x 46.0 mm

• Weight: 680 grams

• Enclosure Material: Sturdy polycarbonate and galvanized steel base

• Network Interface: 1 x 2.5 GbE RJ45 Port

• Power Method: 802.3at PoE+ (Power over Ethernet)

• Supported Client Capacity: 300+ Active Concurrent Connections

• Wireless Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)

• BSSID: Up to 8 per radio interface

• Operating Temperature Range: -30°C to 60°C

Box Contents

• Ubiquiti UniFi U7 Pro Access Point

• Ceiling/Wall Mounting Plate

• T-Bar Mount Bracket Pack

• Screw, Wall Plug, and Anchor Installation Kit
